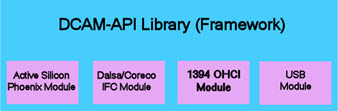

The DCAM-API Internal Structure

  • All Modules are DLL's in Windows. In Mac, they are framework libraries.
  • The application's communication with all the installed cameras in the system is done through one entry point - The DCAM-API Library.
  • The DCAM-API Library contains all the defined exported functions of the API.

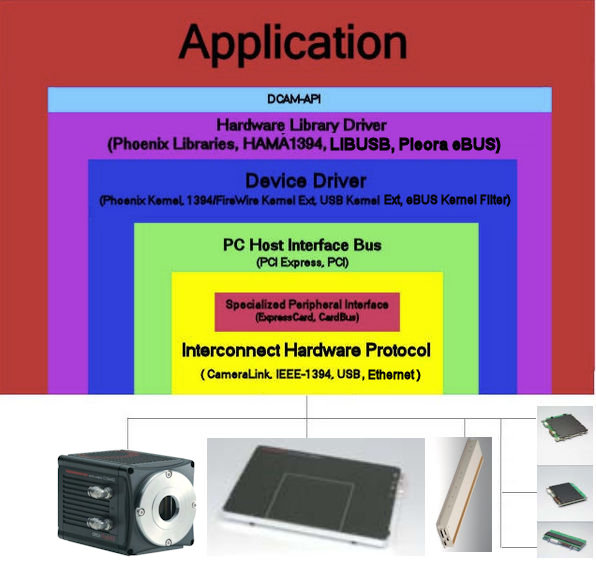

  • DCAM-API is responsible for connecting all registered DCAM-API Modules to the host application.
  • Basic flow
    • Application layer (host) initializes the DCAM-API Library.
    • DCAM-API initializes each module and queries how many devices are found.
    • Total count is returned back to the host. Host can open a connection to any of the devices by index.
    • Once opened, all communication and data acquisition to that device through its connected interface are handled with the link.
    • There is no theoretical limit to how many devices or how many links are opened.
      • Allows for simultaneous control/acquisition of multiple devices.
    • Dynamic property and image data type querying. Common memory management.
    • When done, the connection is closed to each module/device, then the API is cleaned up and closed.
